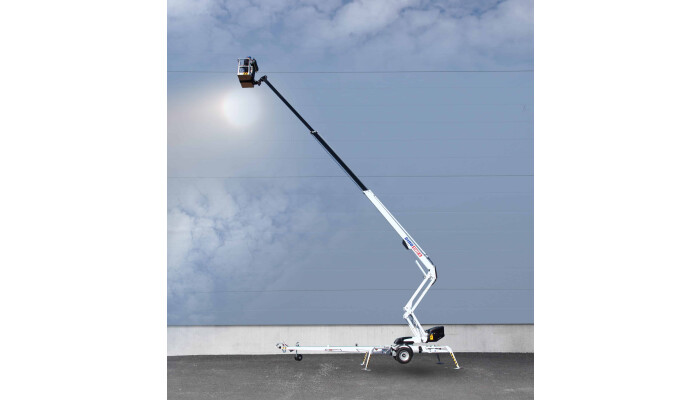

DINO 210XT II / 210XTB II

A robust articulated telescopic boom lift on a trailer chassis, offering a working height of up to 21 m and a maximum outreach of 11.7 m. Its integrated drive system for movement on the work site, spider outriggers and hydraulic 180° basket rotation provide flexibility for service, installation and maintenance work at height. The lift has a basket capacity of 215 kg and a continuously rotating boom.

The DINO 210XT II is equipped as standard with a 110/230 V electric drive and a petrol engine; a diesel engine is available as an option. The battery-powered DINO 210XTB II uses its own 24 V battery drive with four 6 V batteries rated at 235 Ah. An optional petrol generator allows the batteries to be charged on the work site, even where mains power is not available. The lift can also be operated while the batteries are being charged.
